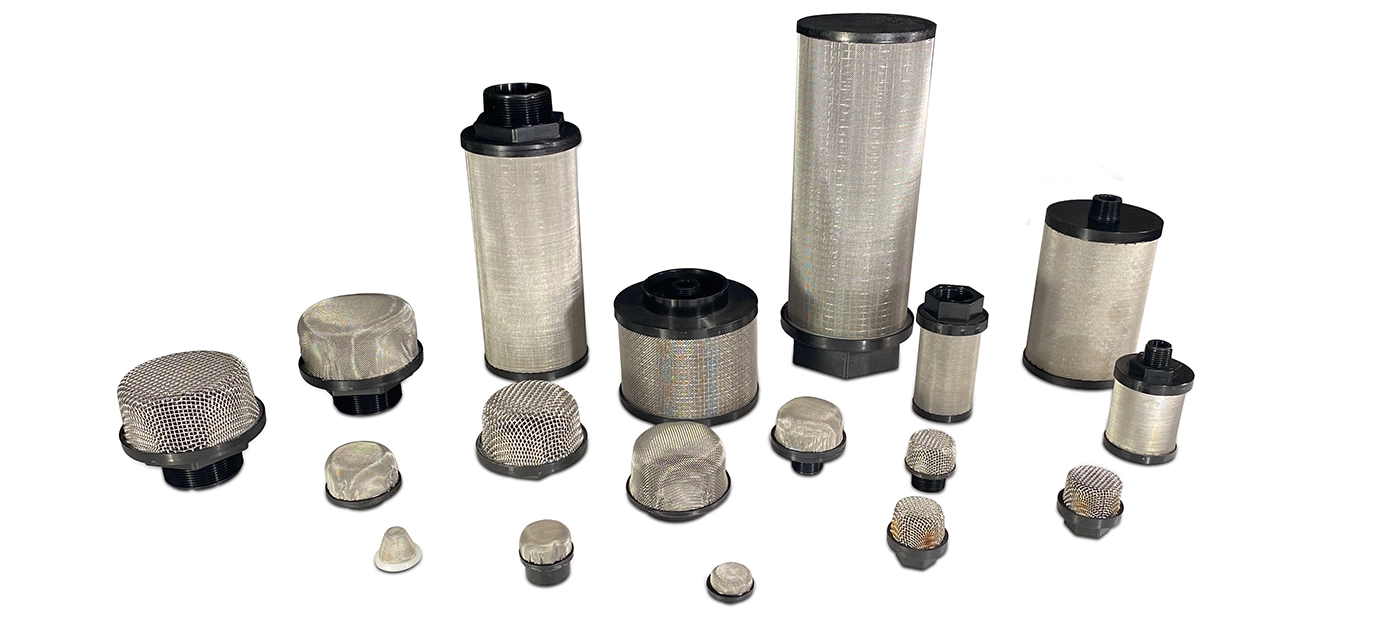

Suction & Tank Strainers products

Suction Strainers

Suction Strainers are used to provide dependable protection for pumps and equipment. Ron-Vik offers a wide variety of suction strainers. The bases of the suction strainers are available in Nylon or Polyvinyl Chloride (PVC). The standard mesh used is type 304 stainless steel material in a variety of mesh counts.

Ron-Vik

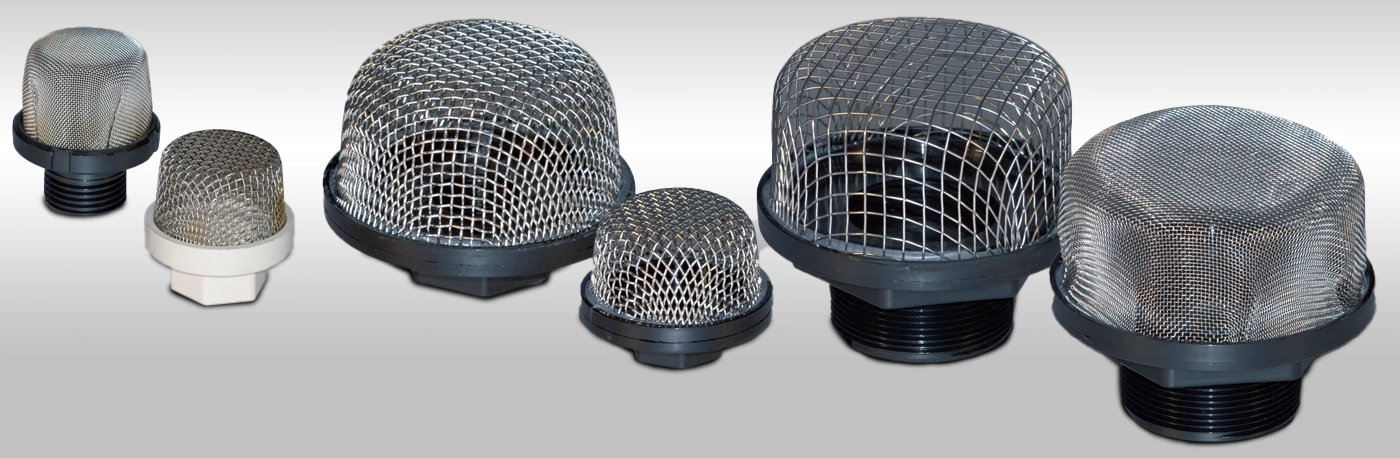

NYLON BASED

The injection molded nylon base is either bonded to the wire mesh using an adhesive or by induction welding. Some of the many markets nylon suction strainers are used for include hydraulic systems, paint spraying equipment, and chemical handling equipment. In general, we rate our nylon based suction strainers at a maximum temperature of 200 Degrees F. The chart below lists our current options for the connection style and mesh. The standard base material is black.

NPTPipe SizeODMesh OptionsHeight
Female1/8, 1/4, 3/8, 1/2, 3/42.394, 6, 8, 10, 20, 30, 40, 50, 60, 1001.9
Male3/8, 1/2, 3/42.3
Female3/4, 1, 1 1/4, 1 1/23.54, 6, 8, 10, 20, 30, 40, 50, 60, 1002.6
Male3/4, 12.8
Female1 1/2, 24.24, 6, 8, 10, 20, 30, 40, 50, 60, 1003
Male23.7
Female2 1/2, 35.064, 6, 8, 10, 20, 30, 40, 50, 60, 1003.7
Dimensions are for reference purposes only.

Customizations


  • Mesh Count
  • Mesh Material
  • Base Color
  • Base Material
  • Bonding Method
Diagram ADiagram B



Ron-Vik

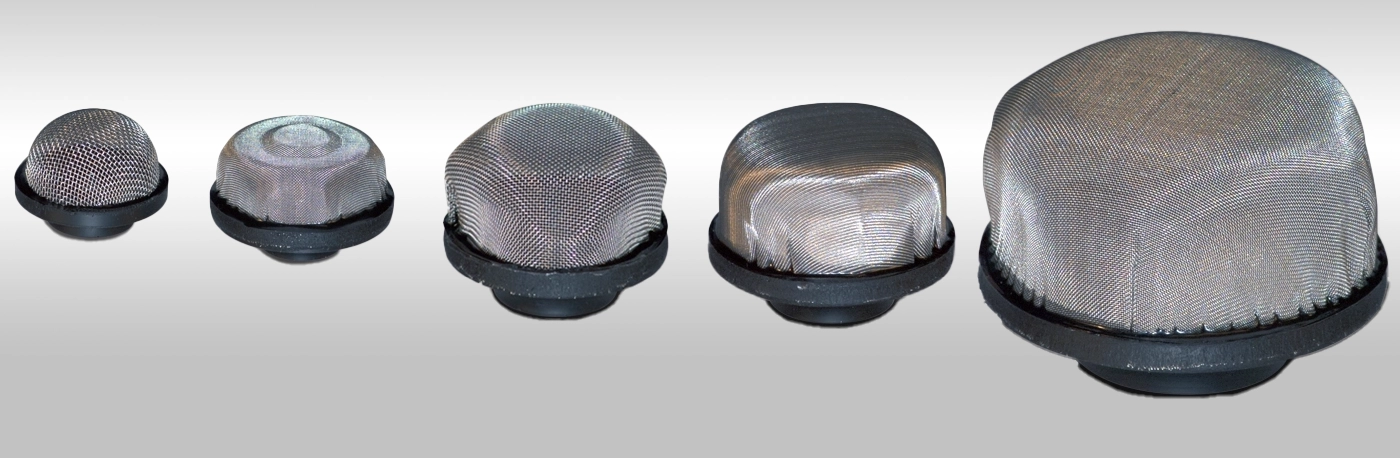

PVC Based

Common applications for PVC suction strainers include pool and spa equipment, water softeners, floor cleaning machinery, pressure washers and car wash equipment. In general, we rate our PVC based suctioners at a maximum temperature of 120 Degrees F. The chart below lists our current connection types and stainless steel mesh counts available.

Pipe/Tube SizeODMesh OptionsHeight
1/4" OD Tube1.2540, 60, 80, 30x150, 50x2500.94
3/8" OD Tube0.9830, 40, 50, 80, 100, 1200.75
3/8" OD Tube1.2530, 50, 80, 100, 40x2000.94
1/4" NPT1.4720, 30, 40, 50, 80, 100, 50x2501.12
3/8" NPT1.4720, 30, 40, 50, 80, 1001.25
1/2" NPT1.7510, 20, 30, 40, 50, 80, 1001.53
3/4" NPT2.188, 20, 30, 40, 50, 801.65
1" NPT3.1320, 30, 40, 50, 802.35
1 1/2" NPT3.1510, 20, 30, 40, 50, 802.37
Dimensions are for reference purposes only.

Customizations


  • Mesh Count
  • Mesh Material
  • Mesh Height
  • Base Color
  • Base Connection Style
  • Base Material
Diagram C



Ron-Vik

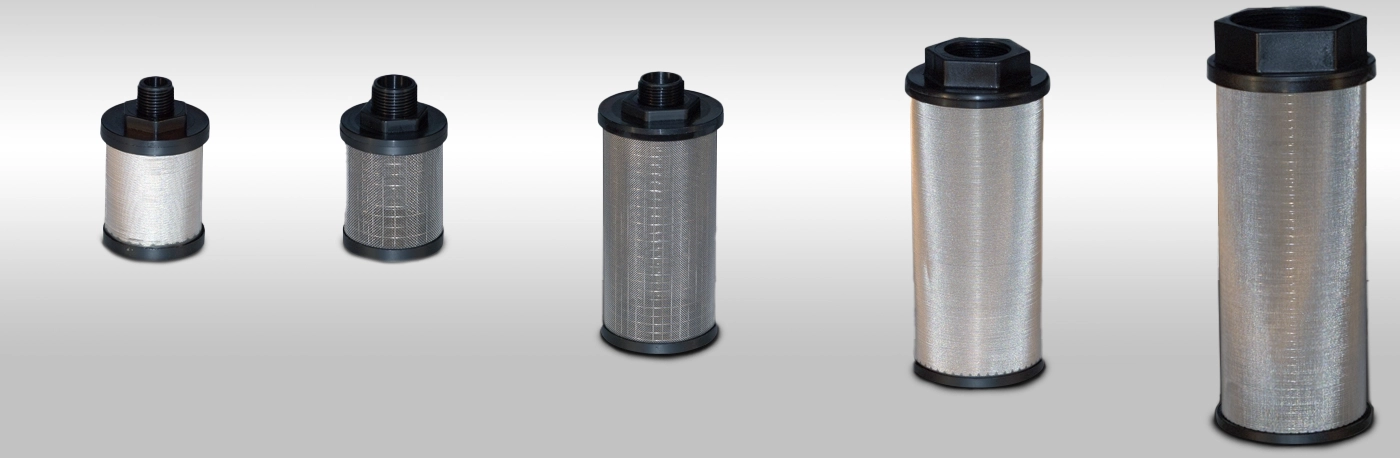

TANK STRAINERS

We recently expanded our line of tank strainers to offer them as a standard product. They are used in many applications where a higher capacity suction strainer is required. They are sometimes referred to as sump strainer. Our tank strainers have injection molded black bases with type 304 stainless steel mesh used for the filtering media. Our maximum temperature rating is 185 degrees F. Some are offered with pleated mesh to allow even greater filtering area. They are a great alternative for applications requiring a higher capacity suction strainer.

Pipe SizeODHeightMesh Options
3/8 MNPT2.393.730, 60, 100, 200
1/2 MNPT3.7
3/4 MNPT3.7
3/4 FNPT3.55.630, 60, 100, 200
1 FNPT5.75
7.38
1 MNPT5.9
7.6
1 1/4 FNPT7.38
1 1/2 FNPT4.29.7530, 60, 100, 200
2 FNPT9.75
2 MNPT10.4
2 1/2 FNPT5.0612.530, 60, 100, 200
3 FNPT12.5
Dimensions are for reference purposes only.

Customizations


  • Mesh Count
  • Mesh Material
  • Base Color
  • Base Material
  • Bonding Method

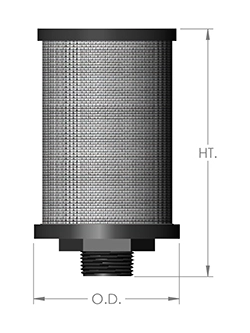

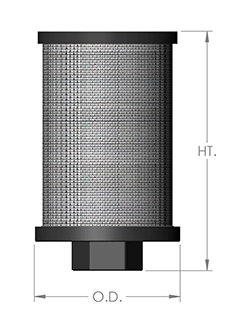

Diagram DDiagram E





The user is responsible for determining whether the Ron-Vik product is fit for a particular purpose and is suitable for the user's application. Ron-Vik's liability shall be limited to the stated selling price of any defective goods, and shall in no way include the user’s lost profits or goodwill or any other special or consequential damages incurred by the user.
